Deep Draw Metal Stamping
Industry-Leading Expertise
Deep draw stamping is a specialized that transforms flat sheet metal into three-dimensional shapes with significant depth. It involves drawing the metal sheet into a die cavity using a punch. The process is characterized by stretching and compressing the metal to achieve the desired shape, often requiring multiple drawing operations to form the final component.
Our deep draw stamping company has honed this specialized metal forming technique since 1968, ensuring excellence in every project. At Trans-Matic, it’s our comprehensive capabilities and industry-leading expertise that make us the partner of choice for diverse companies and industries, from automotive to healthcare.
Deep Draw Stamping Process
Inside the Process
Deep draw metal stamping involves the following stages to achieve the desired outcome:

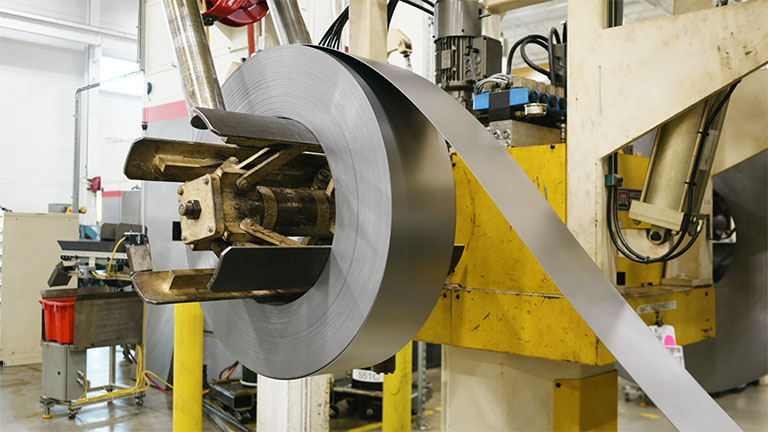

Material Preparation
The appropriate sheet metal material is selected based on the specific requirements of the part to be manufactured. Factors such as material composition, thickness, and ductility are carefully considered to ensure optimal results.
Blank Cutting
Via an automated transfer process, a strip of the carefully selected material is fed into a press and blanks, which are the basis from which the part will be formed, are cut to the required size and shape.

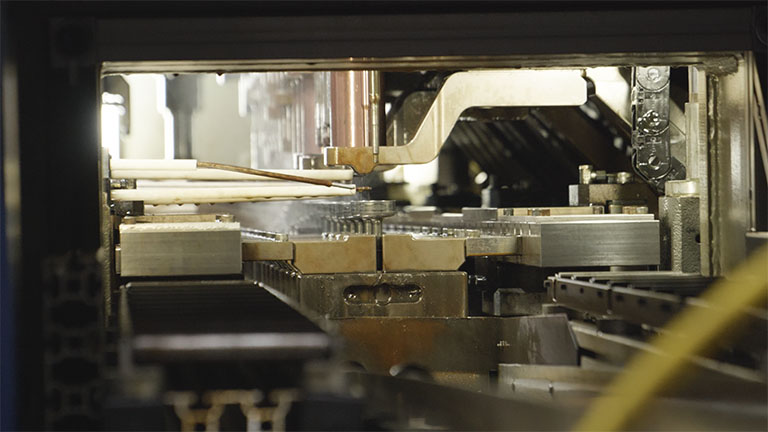

Drawing
The blanks are moved into draw stations, where a punch applies force to draw the material into a die cavity. As the punch descends, the material is stretched and formed, gradually taking on the shape of the die cavity.

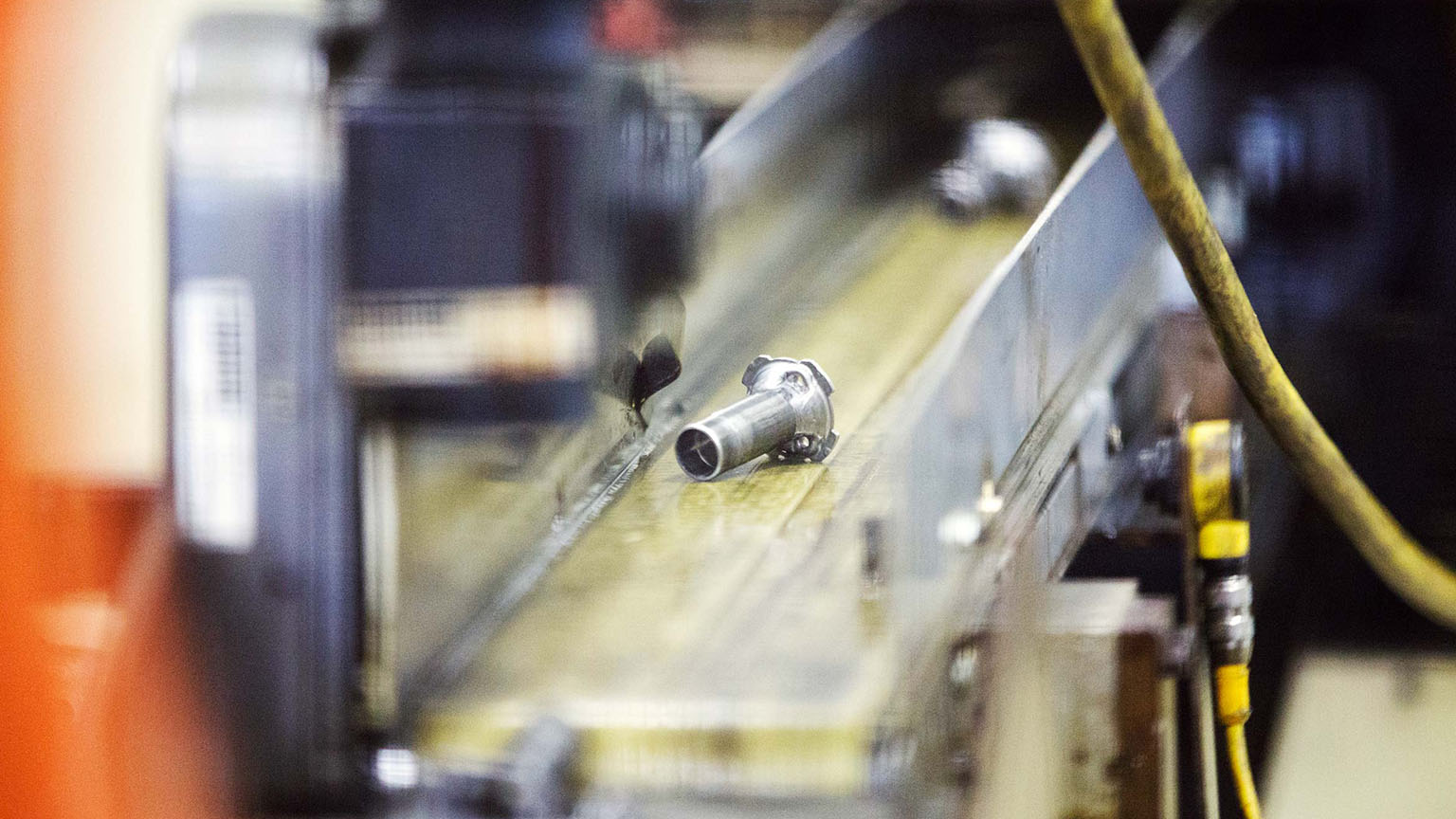

Trimming & Piercing
Once the desired shape is achieved, excess material is trimmed away from the edges of the part using trimming dies. Additional piercing operations may also be performed to create holes or openings in the component as required.

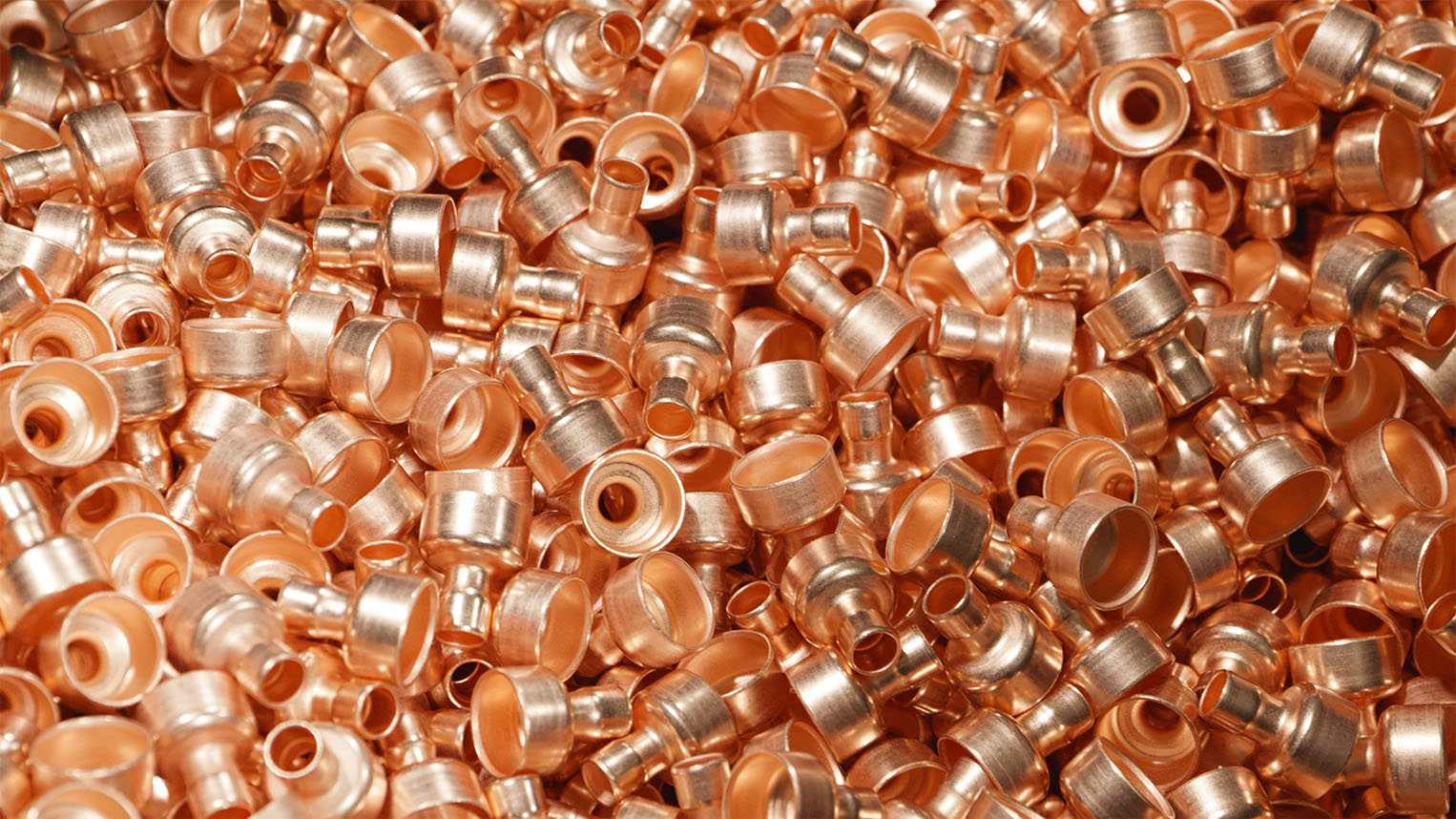

Additional Operations
Operations such as bending, flanging, or coining may be performed to further refine the shape or add features to the component. It may also undergo additional finishing processes such as cleaning, deburring, or surface treatment to enhance its appearance and performance.
Why Choose Deep Draw Stamping?
There are several advantages that make deep drawn stamping a preferred choice for manufacturers across various industries. Key benefits include:
- Material efficiency: The process creates quality products with minimal scrap, reducing costs and environmental impact.
- Cost-effectiveness: With reduced material waste and enhanced production, deep drawn metal forming offers a cost-effective solution for producing complex components.
- High precision: The controlled deformation of metal sheets ensures consistent and accurate part dimensions, meeting the most stringent quality requirements.
- Versatility: This manufacturing process can accommodate many materials, including stainless steel, aluminum, copper, and various alloys. It also allows for production of components with complex geometries for diverse applications across industries.
- Strength and durability: exhibit enhanced strength and durability due to the cold-working process. The metal undergoes plastic deformation, improving mechanical properties and resistance to wear, corrosion, and fatigue.
Trans-Matic’s Industry Leadership in Deep Draw Stamping

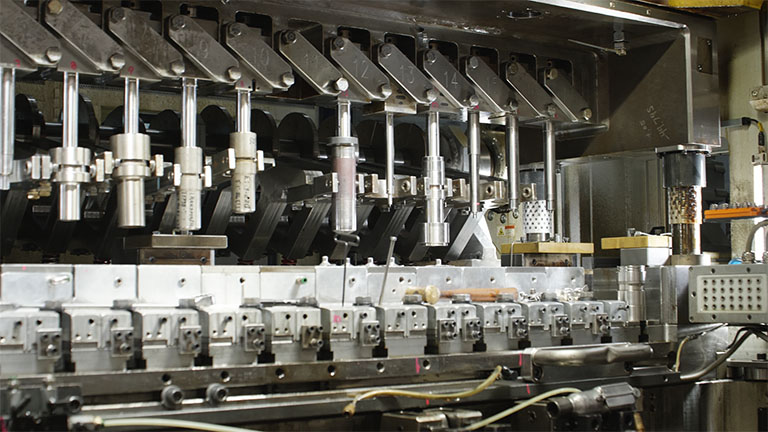

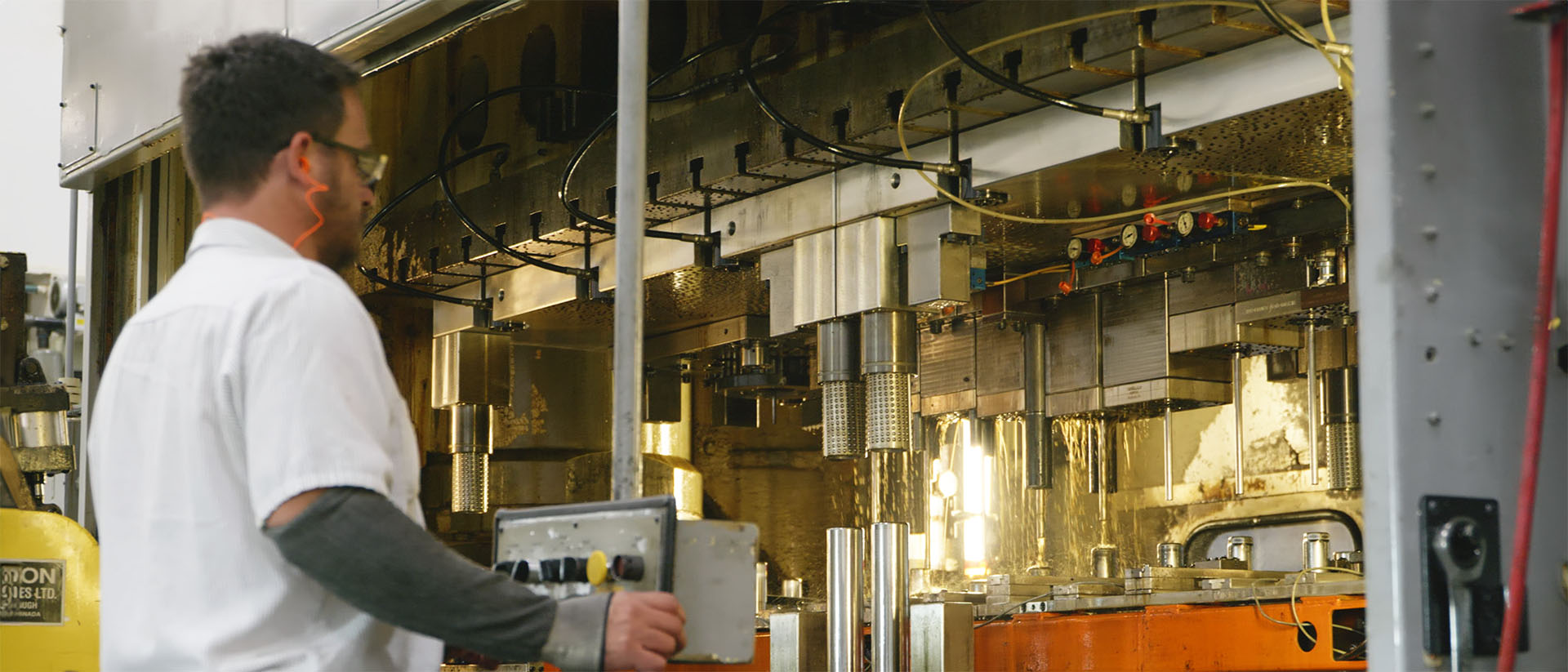

For decades, we have established ourselves as the go-to authority in deep draw metal stamping, setting the industry standard. Our machinery features the latest technological advancements and ensures precision, efficiency, and consistency in every project we undertake. From high-speed presses to automated feeding systems, our equipment is optimized to meet the demanding requirements of modern manufacturing.
Behind every machine, we have professionals with years of experience, a dedication to excellence, and the expertise to overcome challenges and deliver superior results. From tooling design to quality control, our technicians ensure that each component meets the highest standards of craftsmanship and accuracy.
At Trans-Matic, we’ve brought a wide array of products to life for various industries using deep draw stamping. Our portfolio includes components for automotive, plumbing, lock and builder’s hardware, lawn equipment, and more. Whether it’s door knobs, sprinklers, torches, or solenoids, our finished products serve functional, decorative, or hybrid purposes, catering to diverse client needs.
Fulfill Your Deep Draw Stamping Needs
Trans-Matic is a leading deep draw metal stamping company. From our humble beginnings to now, we have evolved into a trusted global supplier, offering cost-effective solutions and personalized customer service. Fill out our online contact form today to schedule a consultation and learn more about how our services can benefit your business.
